Y81F-200 Hydraulic Metal Baler with 200 Ton Force 1600x1200x800mm Press Box and 400x400mm Bale Size
Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.
xΛεπτομέρειες
| Μοντέλο αριθ. | Y81F-200 | Τύπος | πρέσα παλιοσίδερου |
|---|---|---|---|
| Αυτοματοποίηση | Ημιαυτόματος | Κύριο Cyl.Force | 200 τόνοι |
| Μέγεθος πλαισίου | 1600*1200*800 (mm) | Μέγεθος πάχας | 400*400 (mm) |
| Βαρύτητα | 120 ~ 170 (kg) | Μοτέρ | 44 (kW) |
| Τύπος ισχύος | Υδραυλικός | Ονομαστική δύναμη | 125TONS ~ 1200TONS |
| Εξουσία | 15kW ~ 270kW | Δυναμικό | 21,5Mpa, Προσαρμοσμένο |
| Αυτόματος βαθμός | Ημιαυτόματος | Παραγωγική ικανότητα | 5 σύνολα/μήνα |
| Οδηγός τύπου | Υδραυλικός | ||
| Επισημαίνω | 200 Ton Hydraulic Metal Baler,1600x1200x800mm Scrap Baler Machine,400x400mm Metal Baling Press |
||
Περιγραφή προϊόντων

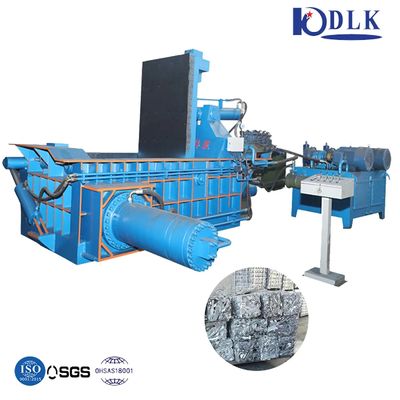

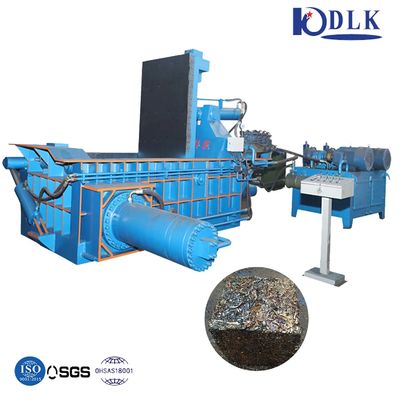

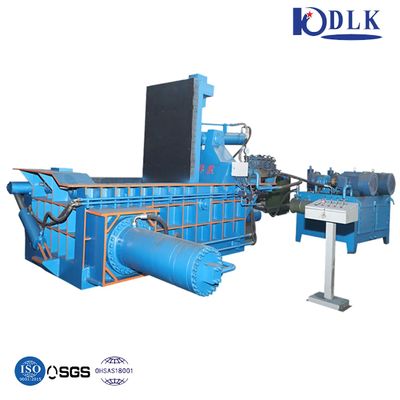

Y81f-200 Hydraulic Metal Steel Shavings Baling Press Machine
The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. This process reduces transportation costs and increases logistics efficiency by producing uniform shapes like square columns, cylinders, and octagonal blocks.
Key Features
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No need for fixed foot screws - portable operation
- Diesel engine compatible for areas with unreliable power supply
- Extrusion force from 63 to 400 tons across 10 models
- Productivity ranging from 4 to 40 tons per shift
- Fully customizable compression chamber and bale dimensions
Applications
Ideal for steel plants, recycling facilities, metal processing industries, and non-ferrous metal refining operations.
Product Specifications
| Attribute | Details |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Technical Specifications
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10set /month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Product Images
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. Spare parts are provided free if problems are caused by us. For man-made issues, spare parts are available at cost. Direct phone support is always available.
Q2: Can I visit your factory before ordering?
Welcome to visit our factory at: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. We're near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We're a manufacturer with our own factory operating for 20 years, exporting 50-60% of our production.
Q4: How can I trust your company?
- Third-party assessed with national patents, CE, and ISO certifications
- Factory inspections welcome - conveniently located near Shanghai Pudong airport
- 20 years specialization in hydraulic balers and hydraulic shears
Q5: Is your price competitive?
We guarantee the best factory price based on superior product quality and comprehensive service.
