Q15A-2000L Gantry Plate Shear Machine with 200 Ton Max Shear Force 600/800mm Blade Length and 25*500mm Max Cutting Specifications

  • Q15A-2000L Gantry Plate Shear Machine with 200 Ton Max Shear Force 600/800mm Blade Length and 25*500mm Max Cutting Specifications
  • Q15A-2000L Gantry Plate Shear Machine with 200 Ton Max Shear Force 600/800mm Blade Length and 25*500mm Max Cutting Specifications
  • Q15A-2000L Gantry Plate Shear Machine with 200 Ton Max Shear Force 600/800mm Blade Length and 25*500mm Max Cutting Specifications
  • Q15A-2000L Gantry Plate Shear Machine with 200 Ton Max Shear Force 600/800mm Blade Length and 25*500mm Max Cutting Specifications
  • Q15A-2000L Gantry Plate Shear Machine with 200 Ton Max Shear Force 600/800mm Blade Length and 25*500mm Max Cutting Specifications
  • Q15A-2000L Gantry Plate Shear Machine with 200 Ton Max Shear Force 600/800mm Blade Length and 25*500mm Max Cutting Specifications
Πιστοποίηση ISO
Ποσότητα παραγγελίας min 1
Τιμή 1

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Μέγιστη δύναμη κοπής 200 (τόνοι) Μήκος λεπίδας 600/800 (mm)
Μέγιστη κοπή 25*500 (mm) Συχνότητα διάτμησης 4-7 (Φόρες/Λεπτό)
Ισχύς κινητήρα 22 ((kw) Ονομαστική δύναμη 120 τόνοι ~ 315 τόνοι
Οδηγούμενος Τύπος Υδραυλικός Δυναμικό 21,5MPa
Αυτόματος βαθμός Ημιαυτόματος Παραγωγική ικανότητα 10 σετ/μήνα
Δύναμη διατμητικής 120-500 (τόνοι) Μέγιστο υλικό 18-40*500-1000 (mm)
Διαμόρφωση κινητήρα 15KW~44kW Επιλογές λεπίδας 600-1600 (mm)
Πηγή ισχύος Ηλεκτρικός
Επισημαίνω

200 Ton Max Shear Force Gantry Shear

,

600/800mm Blade Length Plate Shear Machine

,

25*500mm Max Cutting Specifications Gantry Plate Shear
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
Q15A-2000L Gantry Plate Shear Machine
Product Overview
This hydraulic gantry plate shear machine is designed for processing various metal plates, cutting them into materials of different specifications. It effectively replaces flame cutting methods, significantly reducing operational costs while improving efficiency.
Technical Specifications
Specification Details
Model Number Q15-1200 ~ Q15-3150
Certification SGS
Place of Origin Jiangsu P.R. China
Product Name Gantry Plate Shear
Condition New
Application Scrap Metal Processing
Nominal Force 120 Tons ~ 315 Tons
Driven Type Hydraulic
Power 15KW ~ 44kW
Voltage 21.5Mpa, Customized
Color Customized
Automatic Grade Semi-Automatic
Performance Specifications
Model Shearing Force (ton) Blade Length (mm) Max. Cutting Material (mm) Shearing Frequency (times/min) Motor (KW)
Q15A-1200 120 600 18×500 4-7 15
Q15A-1600 160 600 20×500 4-7 18.5
Q15A-2000I 200 600/800 25×500 4-7 22
Q15A-2500I 250 600 30×500 4-7 22
Q15A-2500II 250 800 30×700 4-7 2×15
Q15A-3150 315 800 30×700 4-7 45
Q15A-4000 400 800 35×700 4-7 2×22
Q15A-5000 500 900 40×800 4-7 2×45
Q15B-1600 160 1200 16/12×1000 4-7 18.5
Q15B-2000 200 1200 18/16×1000 4-7 22
Q15B-2500I 250 1200/1600 25/20×1000 4-7 2×18.5
Q15B-3150 315 1200 30/25×1000 4-7 2×18.5
Commercial Terms
Term Details
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 10 sets/month
Delivery Time As per requirement
Packaging Details Seaworthy packing
After-sales Service Engineers available for overseas service
Q15A-2000L Gantry Plate Shear Machine with 200 Ton Max Shear Force 600/800mm Blade Length and 25*500mm Max Cutting Specifications 0
Recommended Products
Q15A-2000L Gantry Plate Shear Machine with 200 Ton Max Shear Force 600/800mm Blade Length and 25*500mm Max Cutting Specifications 1 Q15A-2000L Gantry Plate Shear Machine with 200 Ton Max Shear Force 600/800mm Blade Length and 25*500mm Max Cutting Specifications 2 Q15A-2000L Gantry Plate Shear Machine with 200 Ton Max Shear Force 600/800mm Blade Length and 25*500mm Max Cutting Specifications 3

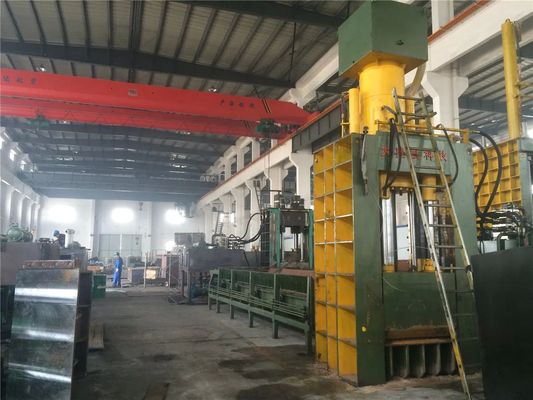

Factory & Certification
Q15A-2000L Gantry Plate Shear Machine with 200 Ton Max Shear Force 600/800mm Blade Length and 25*500mm Max Cutting Specifications 4 Q15A-2000L Gantry Plate Shear Machine with 200 Ton Max Shear Force 600/800mm Blade Length and 25*500mm Max Cutting Specifications 5 Q15A-2000L Gantry Plate Shear Machine with 200 Ton Max Shear Force 600/800mm Blade Length and 25*500mm Max Cutting Specifications 6
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts for free if problems are caused by manufacturing defects. For user-caused issues, we provide spare parts at cost. Direct phone support is available for any problems.
Q2: Can I visit your factory before ordering?
Yes, we welcome factory visits. Our address: 29# Panlongshan Road, Jiangyin City, Jiangsu Province, 214429, P.R China. We are located near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years. Export accounts for 50-60% of our business.
Q4: How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. We hold national patents, CE, and ISO certifications for all equipment. Factory inspections are welcome, and we specialize in hydraulic balers and hydraulic shears.
Q5: Is your price competitive?
We supply only high-quality machines and provide the best factory pricing based on superior products and comprehensive service.
