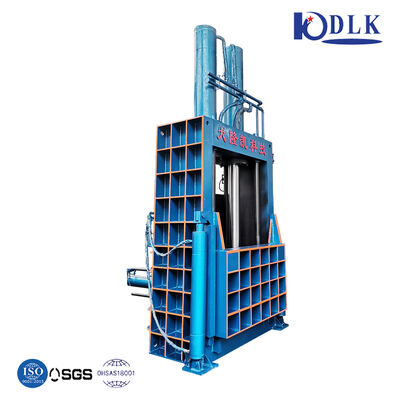

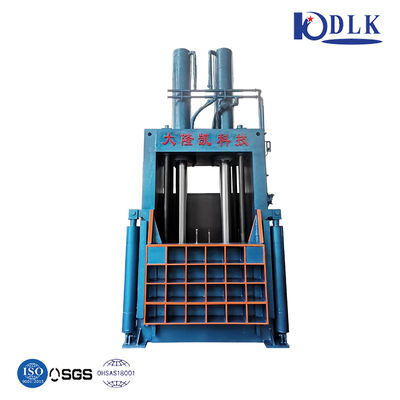

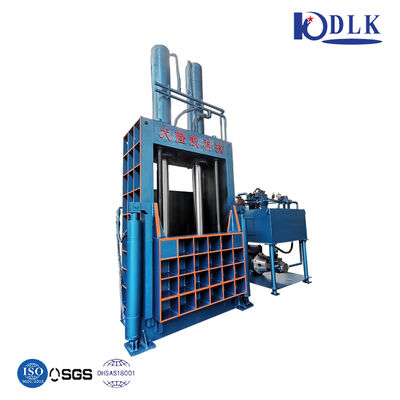

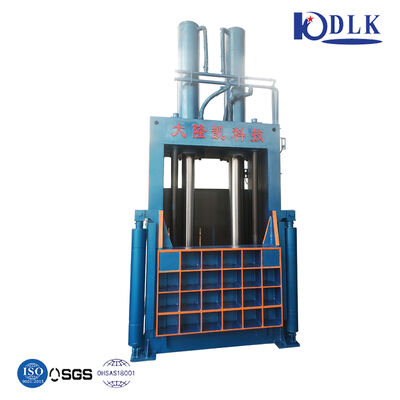

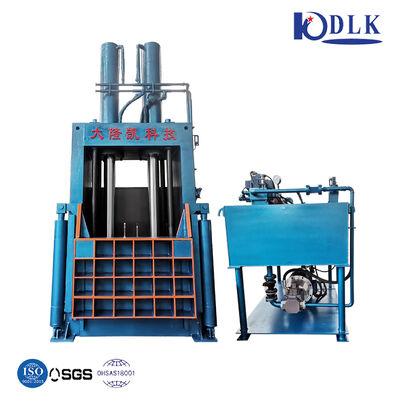

Y82-63 63 Ton Customized Four-Column Hydraulic Press Vertical Baler Machine for Paper and Plastic Baling
Λεπτομέρειες
| Αριθμό μοντέλου | Y82-63 | Κύρια δύναμη κυλίνδρων | 63 τόνος |
|---|---|---|---|
| μέγεθος κουτιού τύπου | 1080*750*1500 (mm) | Τμήμα Bale | 1080*750 (mm) |
| Εξουσία | 15 ((KW) | Μέθοδος εκφόρτωσης | Σπρώξιμο τσάντας |
| Τύπος | Υδραυλικός πρέσος τεσσάρων στήλων | Παραγωγική ικανότητα | 5 σετ/μήνα |
| Ονομαστική δύναμη | 630kN/63T | Μέγεθος θαλάμου | 1080*750*1500 χλστ |
| Τύπος κυλίνδρου λαδιού | Τύπος γενικής χρήσης | σφραγίζοντας δαχτυλίδια | Εισαγόμενος |
| Προσαρμόσιμο μέγεθος | Ναί | Εύρος πίεσης | 15 τόνοι έως 400 τόνοι |
| Απαίτηση θεμελίωσης | Χωρίς υπόγειο ίδρυμα | ||
| Επισημαίνω | 63 Ton Vertical Baler,Customized Hydraulic Baler Machine,Four-Column Hydraulic Press Paper Baler Machine |
||
Περιγραφή προϊόντων
Y82-63 Plastic Vertical Hydraulic Baler Machine
Applications
- Compressing and baling woven bags/cloth, waste paper, and scrap paper for efficient transportation and storage
- Compressing and baling wool/wool balls
Key Features
- Baling press pressure ranges from 15 tons to 400 tons with complete specification options
- Hydraulic pressure drive with overhead type oil cylinder, operates without underground foundation
- All oil cylinders use imported sealing rings for reliable quality and extended service life
- Customizable package block size and compression chamber dimensions according to customer requirements
Technical Specifications
General Information
| Model Number | Y82-250~Y82-1600 |
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 15 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Baler Specifications for Paper/Plastic
| No. | Model | Nominal Force | Chamber Size | Bale Section | Power | Bale Discharging Method |
|---|---|---|---|---|---|---|
| 1 | Y82-25T | 250KN/25t | 1080×580×1500 mm | 1080×580mm | 15KW | Turn-out |
| 2 | Y82-63T | 630KN/63t | 1080×750×1500 mm | 1080×750mm | 15KW | Turn-out |
| 3 | Y82-100T | 1000KN/100t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| 4 | Y82-160T | 1600KN/160t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| 5 | Y82-200 | 2000KN/200t | 1500×1000×1600 mm | 1500×1000mm | 37KW | Turn-out |
| 6 | Y82-250 | 2500KN/250t | 1500×1000×1600 mm | 1500×1000mm | 44KW | Turn-out or PLC control |
| 7 | Y82-315 | 3150KN/315t | 2200×1100×3000 mm | 2200×1100mm | 60KW | |
| 8 | Y82-400 | 4000KN/400t | 1500×1000×1600 mm | 1500×1000mm | 90KW |
Workshop
Our team
Certification
Packaging & Shipping
FAQ
Frequently Asked Questions
How can I get after-service support?
We provide one year guarantee and lifelong maintenance. We will send you spare parts free of charge if problems are caused by us. For men-made problems, we also provide spare parts at cost. Any issues can be addressed by calling us directly.
Can I visit your factory before placing an order?
Yes, we welcome visits to our factory. Our address: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. We are conveniently located near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with export proportion of 50-60%.
How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. We hold national patents, CE, and ISO certifications for all equipment. Welcome to inspect our facility anytime, conveniently located near Shanghai Pudong airport. We specialize in hydraulic balers and hydraulic shears.
Is your price competitive?
We supply only high-quality machines and provide the best factory price based on superior products and comprehensive service support.
