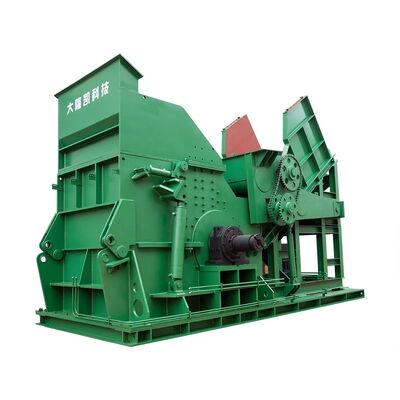

PSX-6868 Hydraulic Drive Scrap Steel Shredder with Hard Alloy Cutter for Fine Grinding Metal Recycling

Ποσότητα παραγγελίας min	1
Τιμή	285800

Λεπτομέρειες

Μοντέλο ΑΡΙΘ.	PSX-6868	Μοτέρ	10-15 (T/H)
Τύπος	Θραυστήρας σφυρί	Οδηγώ	Υδραυλικός
Στον βαθμό συντριβής	Λεπτή μηχανή λείανσης	Στυλ σύνθλιψης	Τρίψιμο και Κρούση
Αρχή	Επεξεργασία με κυλίνδρους	Υλικό κόφτη	Σκληρό κράμα
Αντοχή σε Θλίψη	> 300MPA	Ονομαστική δύναμη	400 τόνοι ~ 5500 τόνοι
Εξουσία	400KW~5500kW	Δυναμικό	21,5MPa
Αυτόματος βαθμός	Αυτόματο	Πλάτος εισόδου τροφοδοσίας	1750mm
Κύρια δύναμη	600kW
Επισημαίνω	Hydraulic Drive Scrap Steel Shredder , Hard Alloy Cutter Hammer Crusher , Fine Grinding Metal Shredder

Αφήστε ένα μήνυμα

Περιγραφή προϊόντων

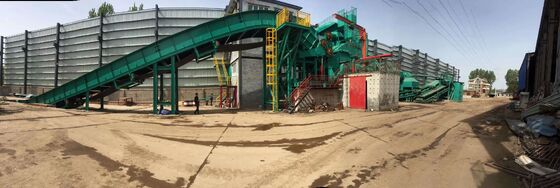

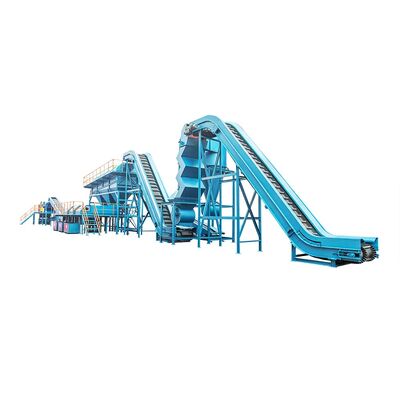

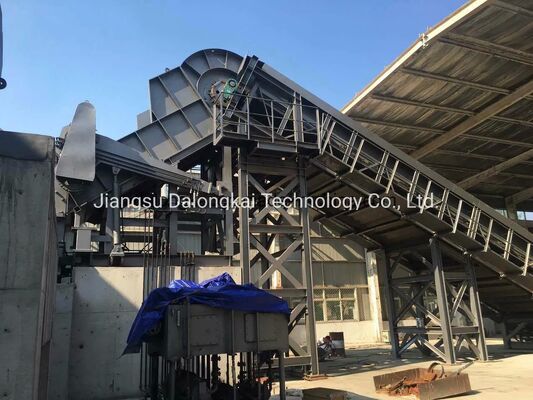

PSX-6868 Scrap Steel Shredder Line

Applications & Benefits

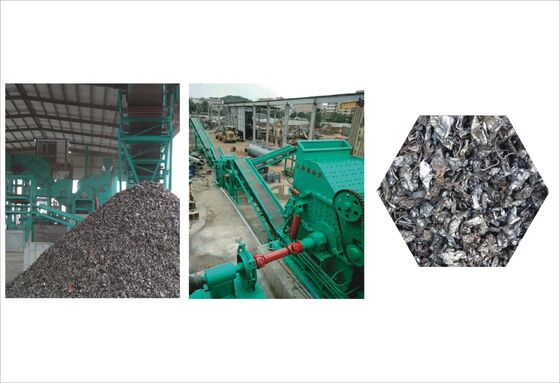

The PSX Scrap Steel Shredder Line is engineered to process various light and thin materials including discarded automobiles, tin plate, household appliances, bicycles, and empty cans. This advanced system transforms scrap materials into pure furnace charge for steel production.

Through comprehensive shredding and compression processes, the system effectively removes impurities and increases material density. This results in significantly reduced transportation and smelting costs while providing steel plants with high-quality furnace charge.

Compatible Materials

Complete or flattened automobile bodies (excluding tires, gasoline cylinders, tanks, engines, and gear boxes)
Various tinplate categories
Household electrical appliances (excluding motors, compressors, and axles)
Bicycle frames and similar structural materials
Empty tanks and containers (excluding liquids, oil paint, etc.)
Other materials suitable for industrial shredding processes

Product Specifications

Product Name	PSX Scrap Steel Shredder Line
Condition	New
Application	Scrap metal processing
Nominal Force	400 Tons - 5500 Tons
Driven Type	Hydraulic
Power	400KW - 5500kW
Voltage	21.5Mpa, Customized
Color	Customized
Automatic Grade	Automatic

Technical Specifications

Model	Feed Inlet Width (mm)	Main Power (KW)	Capacity (t/h)
PSX-5070	1750	450	8-12
PSX-6868	1750	600	10-15
PSX-6886	2200	900	20-25
PSX-68104	2200	1500	30-40
PSX-80104	2600	2240	40-60
PSX-88104	2600	3000	60-100
PSX-98104	2600	4500	100-200
PSX-98114	2900	5500	150-300

Commercial Terms

Minimum Order Quantity	1 Set
Price	Negotiable
Payment Terms	30% T/T In Advance
Supply Ability	6 sets /year
Delivery Time	As per customer requirements
Packaging Details	Seaworthy packing
After-sales Service	Engineers available for overseas service
